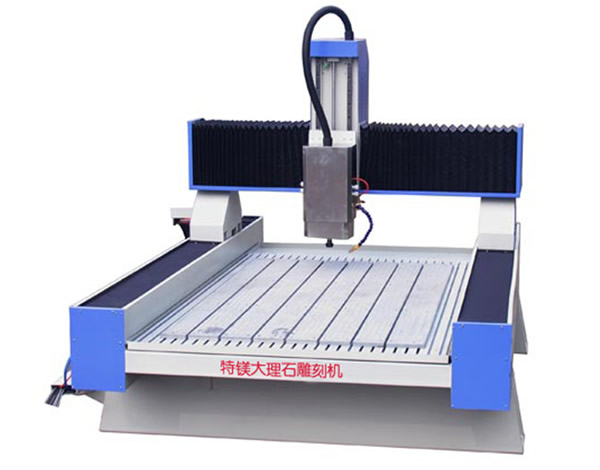

TM-1224SD CNC stone engraver

Basic Parameters：

Applicable industry：
Tombstone carving, antique wall brick carving, stone carving, stone material craft process tea set, glass sculpture, marble sculpture
Application materials：
The industrial rectangular square pipe welding, eliminate the welding stress, high precision gantry machining center, to ensure the accuracy of the body itself, rigidity and stability.

Product Features：

1, the PMI original double screw, original nut driver or high precision rack drive, PMI original guide, effectively guarantee the machine geometric accuracy and machining precision, and at the same time, effectively reduce the vibration and chatter machine operation and the improvement of the machining the workpiece surface.
2, about machine support, bearing, flange holder, Z to assembly, and other key parts are made of cast iron tempering process, to ensure that no deformation and design precision, installation process using instrument measurement, ensure the installation accuracy in place.
3, XY soft dust cover, effectively prevent cutting waste and dust to guide or screw pollution caused by loss of accuracy.
4, in the course of processing, automatic water spray, work platform have pool guarantee machine dust will not disorderly splash, avoid the processing temperature is too high in cutting knife.

Product Parameters：

Model	TM-1224SD
Working area	1200×2400×180mm
Spindle power	Air cololing3000W
Spindle speed	6000~24000rpm
Driver	Step driver
Blade diameter	∮3.175，∮6, ∮12.7mm
Machine structure	Cast square tube
Driver system	XZ imported screw,Y imported double-screw
XYZrail guide	Imported linear guide
Machine precision	＜0.1/300mm
Speed	8000mm/min
Data transmit	Computer

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
