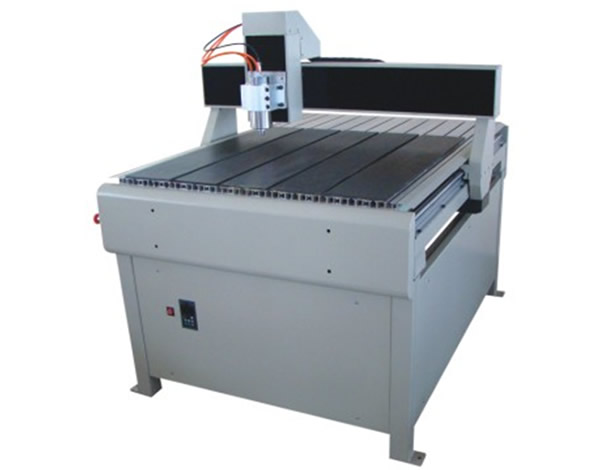

TM-6090DS CNC Router

Basic Parameters：

Applicable industry：
Acrylic cutting,woodworking furniture engraving,wood door,wood window,3d wood wave,decoration,mould,adverting ect
Application materials：
Acrylic,PVC board,soft and hard wood,plywood,MDF,ABS double color sheet ,Electric board, aluminum, copper, iron, etc.

Product Features：

1.DSP system：Advanced DSP system,handle operation,large liquid crystal display,easy operation ,convenient maintianance Designed with a user-friendly
2.High intelligence operation：Adopt unique intelligent calculation to realize high speed processing, curve and linear synchronous, curve more smooth;
3.Storage space is large：32M of memory capacity is able to store 30 processing files simultaneously and open and process any of them
4.Arbitrary switching workpiece coordinates：Can store 9 coordinates zero point,working coordinates can be switch arbitrary
5.USB offline control：The USB interface communication with the computer, instantly complete data transmission；
6.Continuous engraving function：It is able to go on engraving and cutting when the electricity is cut or the tool is broken ,convenient and easy operate.
7.High power spindle：The spindle with high power and frequency conversion enables the machine to cut plexiglass of 20-30mm thick in one cut
8.Import screw guide：Excellent two-bolt pole made in germany and import slidway
9.The cast iron structure:The guarantee decade not deformation, thickening aluminum alloy working table, assure the machine's strong stable
10.Lower failure rate：Internel line shielded perfect,anti-interference,high signal,lower failure rate
11.Strong compatibility：compatible with,Type3/Artcam/Castmate/Proe/UG/ lasercut and all kinds of CAD/CAM software.

Product Parameters：

Table size(mm)	1200x900mm
Working area(mm)	600x900x90mm
Max engraving speed	8000mm/min
Spindle power	1.2KW
Data reception mode/capacity	USB inferface /32M
Instruction format	G-code、HPGL
Spindle speed	6000-24000rpm/min
Spindle tool(mm)	￠3.175/￠6
Power supply	AC220/50HZ
power	400W
Driver system	Stepper
Weight(kg)	280

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
