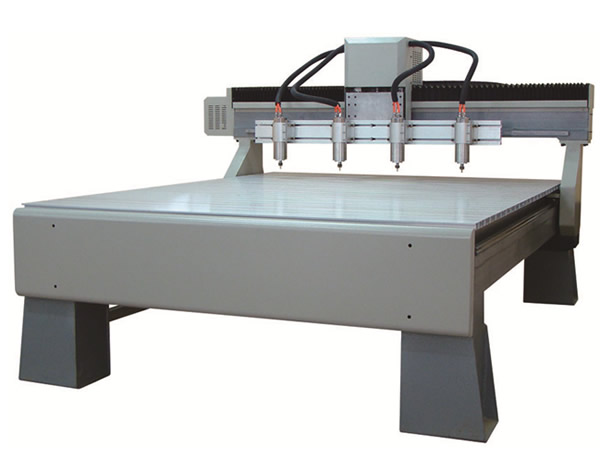

TM-1513-4Z CNC Multi engraver

Basic Parameters：

Applicable industry：
Acrylic cutting,woodworking furniture engraving,wood door,wood window,3d wood wave,decoration,mould,adverting ect
Application materials：
Acrylic,PVC board,soft and hard wood,plywood,MDF,ABS double color sheet ,Electric board, aluminum, copper, iron, etc.

Product Features：

1.he industrial rectangular square pipe welding, eliminate the welding stress, high precision gantry machining center, to ensure the accuracy of the body itself, rigidity and stability.
2, the PMI original double wire rod, original nut driver or high precision rack drive, PMI original guide, effectively guarantee the machine geometric accuracy and machining precision, and at the same time, effectively reduce the vibration and chatter machine operation and the improvement of the machining the workpiece surface.
3, machine or so support, bearing, flange holder, Z to assembly, and other key parts are made of cast iron tempering process, to ensure that no deformation and design precision, installation process using instrument measurement, ensure the installation accuracy in place.
4.XY soft dust cover, effectively prevent cutting waste and dust to guide or screw pollution caused by loss of accuracy.
5.Independent closed control cabinet, can make the computer operation away from dust, convenient operating mobile.
6 intelligent CNC control system, the operation is simple to learn, intelligent check for errors and error protection function.
7.Double screw double motor drive: to improve the running speed of the machine, make sure the machine running high speed and high precision.
8.Z axis screw drive: ensure high precision, BuKa machine don't throw step
9, high quality parts: the famous brand alternating current transformer and drive, stable performance, BuKa machine good position.
10, multi-function application: has the breakpoint, power off, break knife continue engraving function, coordinate system operation, minimize loss.
11, strong compatibility: compatibility on the market a lot of sculpture and relief software, can easily finish design program carving processing

Product Parameters：

Model	TM-1513-4Z
Platform area	1540×1520×150mm
Working area	1500×1300×150mm
Spindle power	Water cooling800W×4
Driver	Step driver (can choose servo motor)
Cutter diameter	∮3.175，∮4，∮6, ∮12.7mm
Running way	Imported screw ball driver
XYZ rail	Imported linear rail
Repeat precise	＜0.03/300mm
Engraving speed	6000mm/Min
Rotational speed of spindle	6000~240000rpm
Data transmission	Computer interface

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
