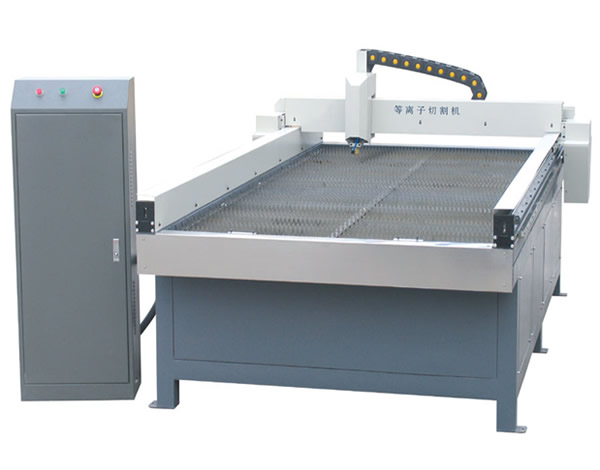

TM-CP1325 CNC Plasma machine

Basic Parameters：

Applicable industry：
Steet sheet ,Aluminum sheet ,Galvanized sheet,white steel plate,Titanium plate
Application materials：
Parts cutting,thick special shape cutting and processing,riveting area processing

Product Features：

1, the light beam structure design, this structure has good rigidity, light dead weight, motion inertia small etc.
2, gantry structure, Y axis adopt synchronous double motor drive and double X, Y, Z three shaft using circular guide (optional formula type linear guide), stable transmission, high precision operation.
3, in view of advertising stereo luminous words, channel word metal panel and base plate cutting, the cutting precision to achieve good indicators.
4, and other advertising equipment (suction molding machine, cut tooth machine, engraving machine) supporting the development of advertising word processing line, completely solve the traditional manual processing methods. To improve the working efficiency of multiple.
5, cutting young, neat and no off slag phenomenon, self-priming arc, stable performance, striking the arc success rate more than 99%.
6, support the Thai, ARTCAM, Type3 software such as generated standard G code path file, also can through the software conversion read AUTOCAD software such as generated DXF file, the control system using usb flash disk exchange processing documents, convenient operation.
7, plasma power and cutting gun supporting domestic famous brand, won a number of national patent technology manufacturer production.

Product Parameters：

Machine model	TM-CP1325
Processing materials	Iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plate
Working area	1300x2500mm
Working thickness	(60A or 100A)0.5-15mm
Cutting speed	0-8m/min
Moving speed	0-50m/min
Power	8.5KW
Input power	3phase 380V
Votage	50HZ
File transfer way	USB interface
Arc starting way	untouched arc striking

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
