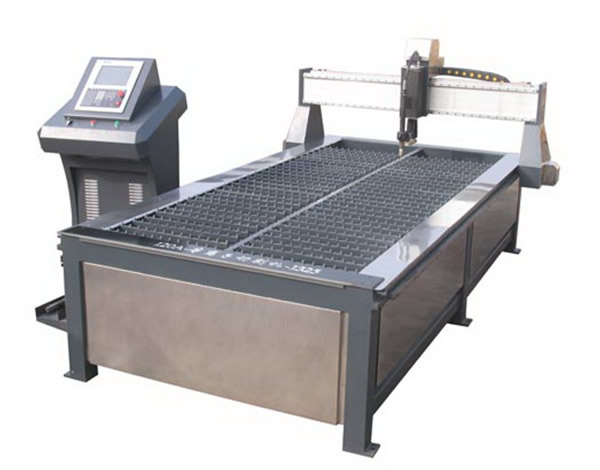

TM-JP1325 CNC Plasma machine

Basic Parameters：

Applicable industry： Steet sheet ,Aluminum sheet ,Galvanized sheet,white steel plate,Titanium plate
Application materials： Parts cutting,thick special shape cutting and processing,riveting area processing

Product Features：

1. The thick wall square tube overall welding, artificial aging bed body, strong, deformation, good rigidity.
2, reasonable platform design, mesa using 10 mm steel plate after finishing stands after installed on the bed surface, the reload after finishing of cast iron rack cover set of protection vertical steel plate, in the high strength steel plate under the flame are not damaged, the double surface flatness keep in 0 ~ 1.5 mm inside.
3, reasonable slope leakage material design, the processing of the workpiece and the broken material along the slope knife stand on both sides of the foot, safe and convenient.
4, the entire drive the panasonic servo motor configuration Taiwan servo speed reducer and high precision gear rack, and ensure that the noise is small, stable and accurate coordinate mobile performance.
5, the joint venture between China and the United States, Dartmouth control system, and is equipped with automatic save material German automatic layout software.
6, the American fly matt power (power and a / 120 a / 200 a) with high sensitivity and the arc pressure controller block, automatic adjustment to select the best cutting distance, to ensure the precision of the workpiece cutting.
7, perfect and reasonable design and high precision cutting out the cleansing work is all kinds of thick plate deformed plate cutting the best choice.

Product Parameters：

Machine model	TM-CP1325
Processing materials	Iron plate, aluminum plate, galvanized sheet, white steel plate, titanium plate
Working area	1300x2500mm
Working thickness	(40A)0.5-10mm (120A)3-16mm (200A)3-25mm
Cutting speed	0-8m/min
Moving speed	0-50m/min
Power	8.5KW
Input power	3phase 380V
Votage	50HZ
File transfer way	USB interface
Arc starting way	untouched arc striking

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
