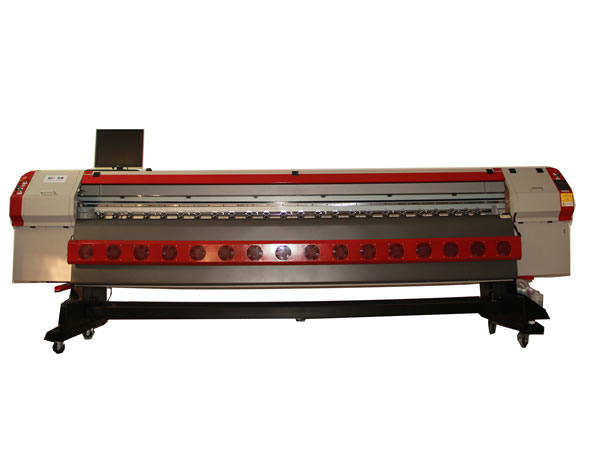

WP-AK3206F

Basic Parameters：

Model No:WP-AK3206F
Applicable areas: advertising industry, digital printing, decoration, etc
Applicable materials: light cloth, the car sticker( removable black glue,permanent white glue, transparent car sticker) reflective cloth, banner cloth, transparent luster, flag banner, one way vision,mesh, IT cloth crystal checked (surface is reflective)

Product Features：

High precision: Japan latest Konica series printhead, minimum drop 42pl, truly achieve 1440 dpi
High speed: nozzle ignition frequency with high precision, large power motor improve your production efficiency
Material don't walk partial: imported feeding device, belt grinding rod feeding way, high precision and no deviation when printing in a long picture.
fast drying speed: with extended front heating, after heating,widen platform heating and fan function to ensure the screen output absolutely dried after heating platform
No head blocking : dual voltage control, based on km512’s double exhaust orifice, dual voltage characteristics,specially design the control system with two group of voltage/automatic temperature adjustment curve, respectively control each row nozzle voltage, automatic adjust nozzle voltage in different temperature , so that the ink size is the same, to achieve consistent picture saturation.
Carriage smoothly: Japan original THK guide rail, low noise, high precision, guaranteed the carriage moving stability;
Automatic cleaning nozzle: between printhead and secondary ink cartridge has cleaning valve, so you can maintain and clean the printhead easily, no need to worry maintenance trouble for the holiday.
Super stability: The frame have been passed through precise gantry milling two times precision processing when assembling, vertical and horizontal adjustment;Long time fatigue and aging test;High standard management system
Stable output: suction platform adopts turbofan,strong wind force, can guarantee the material smooth,greatly avoid the mechanical and nozzle damage
Convenient Control system : win color’s latest research control system, good stability and first-class performance,

Product Parameters：

WP-AK3206F	standard configuration konica
Heating system	back flat front heating
Printheads	6pcs KONICA512-42PL (1*C,M,K,Y,LC,LM)
Resolution	360dpi / 720dpi/1080dpi / 1440dpi
Printhead heating system	Standard equipped
Feeding system	Standard equipped
take up system	Double rod
perspex sheet on the protegulum	Optional equipped
Printhead protection	ink stack printhead protection
Head height	2-5mm, adjustable
belt	Italy MEGADYNE brand
Guide rail	Mute rail
X servo motor	Leadshine 180w AC servo motor
Y servo motor	Leadshine 180w AC servo motor
Rip software	ultraprint5.2
Dryer	One or double row for optional
Printing width	3.2m
Resolution	1440dpi
Printing speed	Production mode:40m²/h Standard mode:35m²/h Quality mode:25m²/h
Work environment	Temperature:18℃-29℃,humidity50-80%
Power	50HZ,AC220V
Net weight /gross weight	650kg/750kg

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
