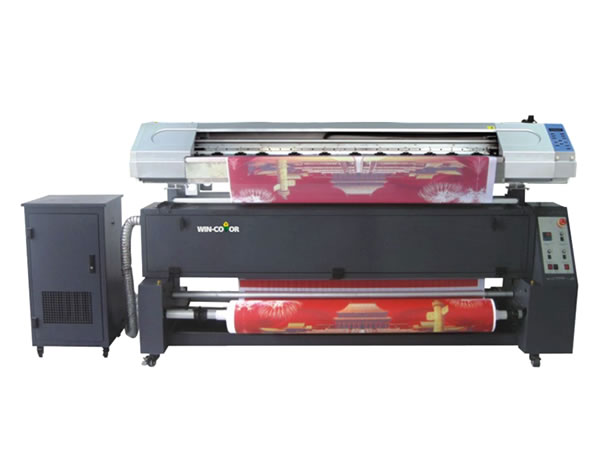

WP-YH1600 sublimation printer

Basic Parameters：

Series No:WP-YH1600
Applicable areas:
1, can print in self adhesive paper and photo paper for advertising
2,engineering drawing in engineering of paper, CAD.
3, do color banners
4,digital printing, transfer printing industry
Applicable materials: flag cloth,silk cloth,canvas silk cloth, etc

Product Features：

Independent research interface card: own the pictorial machine chip development technology, also can develop any national interface card.
Constant tension take-up system:automatic variable continuous tension take up system, ensure the material smoothly as the original
The latest piezoelectric nozzle: the most advanced fifth generation drops controlled micro piezoelectric print head, double four color outprint ,high cost performance, print various medias.
Unique eclosion function: the unique 3 d eclosion function,completely solve the print pass problems. Has three eclosion function
High stable mute guide rail: the super mute THK guide rail, international quality,low noise when working
Automatic cleaning and moisturizing device: The most advanced intelligent nozzle cleaning and moisturizing device, provide safe and convenient nozzle cleaning and maintenance function,so that printing more conveniently.
High speed transmission: USB interface, transmission speed up to 480 m/s, work once plug in, provide network interface, easy to realize fast printing.
Perfect accessories combination:hot color machines and printers perfectly synchronous combination, improve the work efficiency. More colorful.
Intelligent data save: full intelligent operating system,easily operation for the suction, heating, data storage function.
strictly testing before shipping: 24 hours aging test before shipping, the comprehensive simulation of the real working environment, guarantee the best working state.

Product Parameters：

Model		WP-YH1600
Printhead		5th EPSON Piezoelectric continuous drop-on demand
Printhead number		1pc
Max printing speed		1600mm
Printing resolution		360×360 360×720 360×1080 720×720 720×1080 1440×1440（dpi）
Printing speed	Max print speed 4Pass		17㎡/hr
	Quality mode 6Pass		12㎡/hr
	Precision mode 8Pass		9㎡/hr
	High-precision mode16Pass		5㎡/hr
Ink	Type		sublimation ink
	Color		8 colors,Double 4 color
	Capacity		440ml of each ink cartridge
	Ink Supply System		Block brake type of ink supply system
Media	Width		1600mm
Print Height	2-3mm above media adjustable
Heating system	pre-heating platen-heating post-heating
Media adsorption system	Several phase of intelligent air draft,and intensity adjustable
Feeding up system	40kg Max
Auto Printhead Cleaning System	Anti-clogged Flash Function & Moisturing System
Clamp	Combined well resistance clamp
Power	Direct Dye sublimation 3500W,printer 100W
Print Interface	USB2.0
RIP software	Maintop、Photoprint、Wasatch
Printer power	AC220V,50Hz/60Hz；AC220V,50Hz/60Hz
Machine Dimension	2660×850×1520mm（L×W×H）
Machine weight	420KG

Services：

1 FREE for users to provide relevant technical guidance and advice; according to the user equipment and requirements for use of the environment to provide relevant recommendations;
2 FREE delivery device (freight delivery shall bear responsibility for the customer is responsible for pick-unloading charges customers themselves);
3 FREE onsite installation and commissioning services;
4 FREE training of personnel;
5 YEAR warranty expires, the warranty period, only charge labor and parts costs; guaranteed lifelong service.
